Product introduction

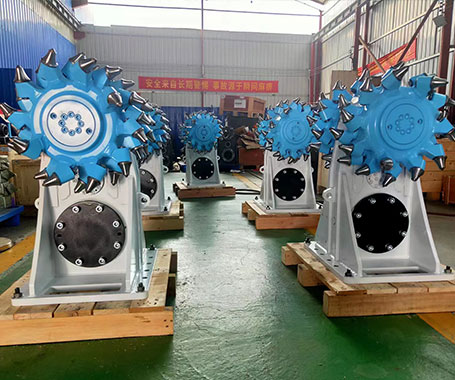

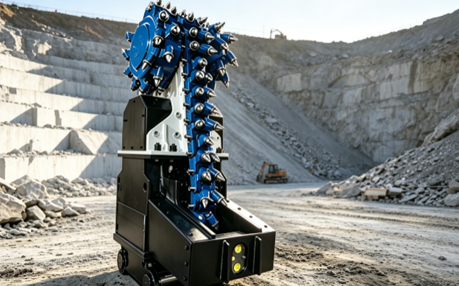

The excavator milling machine is a specialised attachment for excavators, mounted on 6-70 tonne machines to perform milling operations on hard materials such as trench excavation, tunnel maintenance, building demolition and refurbishment, open-pit mining, road surface milling for construction, and can also operate underwater. It can be customised according to the size of the excavator.

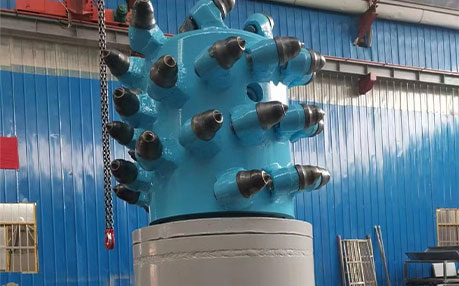

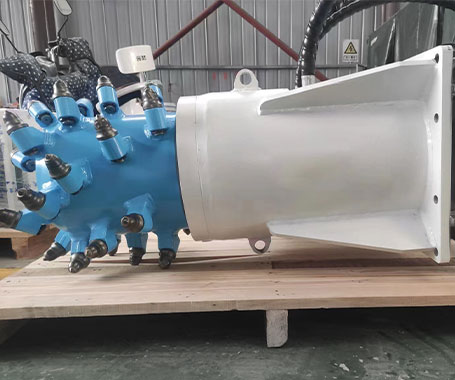

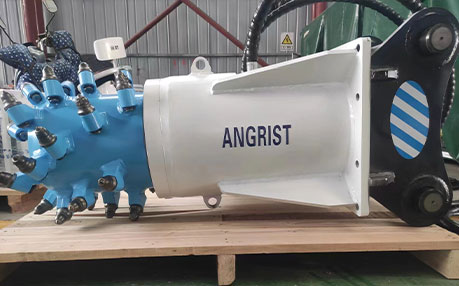

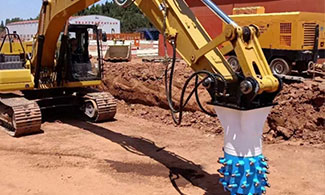

vertical milling excavators
Get A Quote

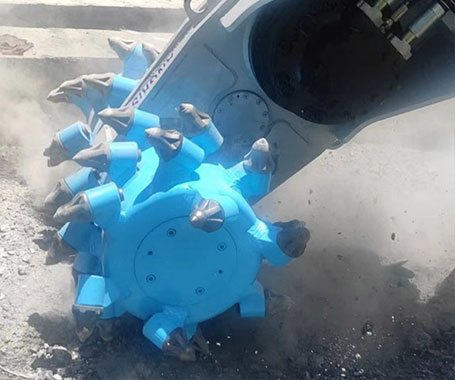

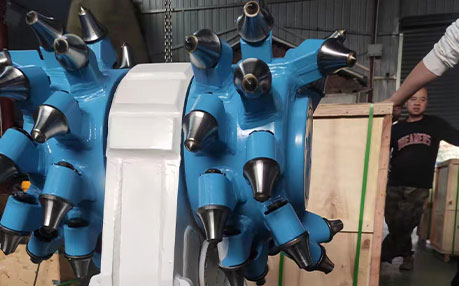

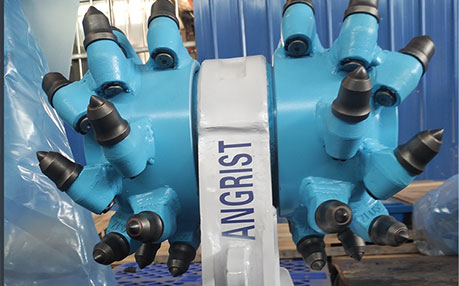

Horizontal milling excavators
Get A Quote

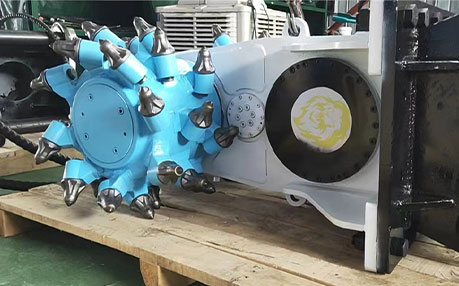

multi-purpose milling excavators
Get A Quote
Technical Specifications
| Model | YG-160 | YG-180 | YG-210s | YG-240 | YG-350 |
| Engine Displacement | 1340ml/r | 1340ml/r | 2680ml/r | 2099 ml/r | 4198ml/r |
| Speed Range | 0-90 r/min | 0-120 r/min | 0-100 r/min | 0-85 r/min | 0-140 r/min |
| Max Flow | 174 L/min | 160 L/min | 268 L/min | 280 L/min | 580 L/min |
| Rated Pressure | 25 Mpa | 28 Mpa | 28 Mpa | 25 Mpa | 30 Mpa |
| Max Pressure | 30 Mpa | 35 Mpa | 35 Mpa | 35 Mpa | 45 Mpa |
| Max Torque | 5200 N.m | 5600 N.m | 9000 N.m | 12800 N.m | 23500 N.m |
| Max Power | 45 KW | 50 KW | 80 KW | 65 KW | 120 KW |
| Cutter Head | 36-56 pcs | 44-68 pcs | 44-68 pcs | 48 pcs | 76 pcs |
| Height | 840 mm | 830 mm | 840 mm | 1420mm | 1450 mm |
| Width | 650-780 mm | 500-780 mm | 500-780 mm | 1000mm | 1100 mm |
| Diameter | 460 mm | 470-500 mm | 470-500 mm | 620 mm | 690 mm |
| Weight | 600 KG | 600 KG | 600 KG | 1650KG | 1700KG |
| Excavator Class | 10-15 T | 10-20 T | 18-25 T | 20-30 T | 30-50 T |
| Note: Technical specifications may change without notice due to ongoing technological advancements. | |||||
Note: Technical specifications may change without notice due to ongoing technological advancements.
Product Advantages
Get A Quote
Application Areas
Excavator drum cutter is widely applicable for the loading, unloading and handling of diverse materials including scrap steel, waste materials, timber and stone.
Get A Quote

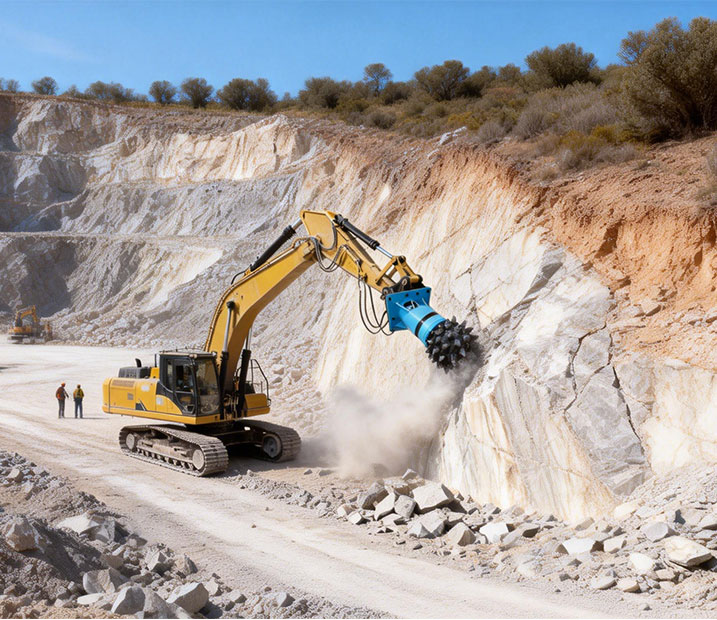

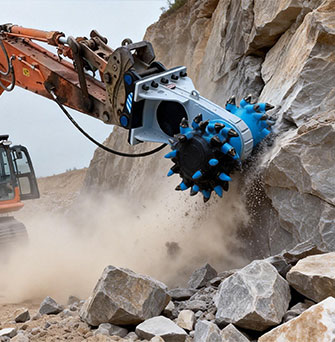

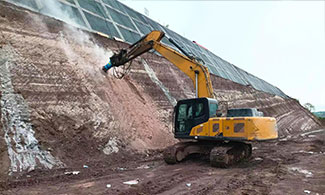

Mining Operations

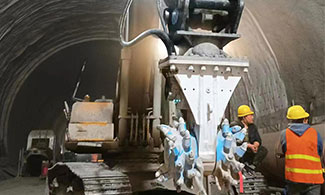

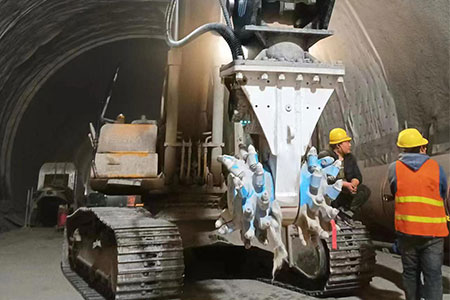

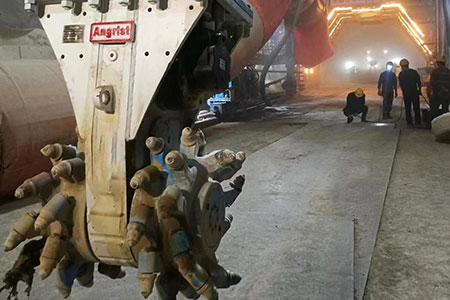

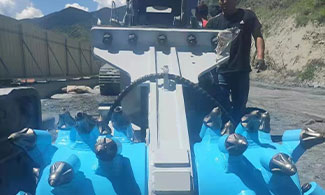

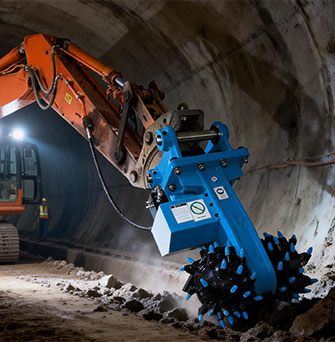

Tunnelling Works

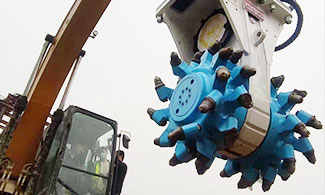

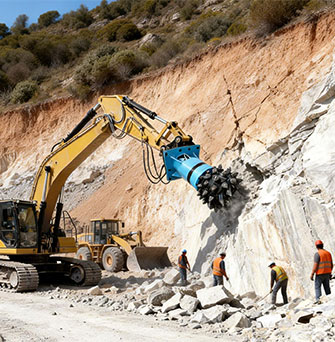

Rock Handling
Earth & Rock Engineering
Why Choose Us
-
01Specialist manufacturing facilitySupplying high-calibre excavator rock grinder directly from the production source, ensuring every unit meets stringent industry standards.
-
02Two decades of sector expertiseDelivering bespoke solutions and technical support, offering a comprehensive range of excavator attachments.
-
03Complete parts provisionProviding end-to-end services including full sets of excavator accessories and attachments.
-
04Full-process serviceDelivering comprehensive support from pre-sales consultation and contract execution to after-sales service and technical assistance.
Customer Real Case
YuGong excavator attachments milling attachment for excavator is exported to over 100 countries and regions, with more than 2,000 customer case studies, earning widespread recognition and acclaim from clients.
Get A Quote
Related Products
Choose Yugong excavator attachments to make your projects easier and faster, delivering outstanding performance under any conditions.

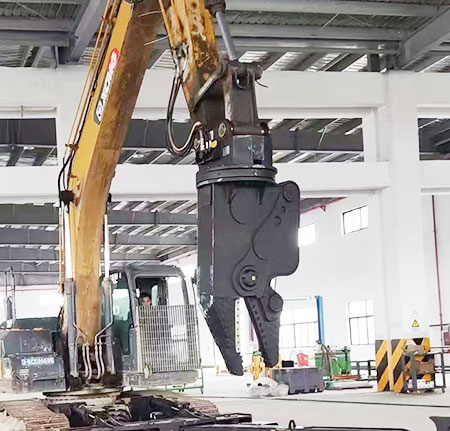

Car Dismantling Shears
Get A Quote

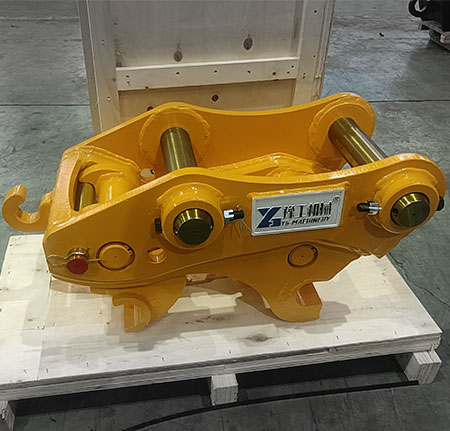

Quick-connect Attachments
Get A Quote

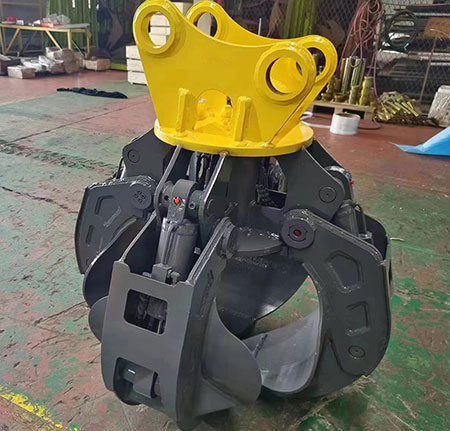

Orange Peel Grab
Get A Quote

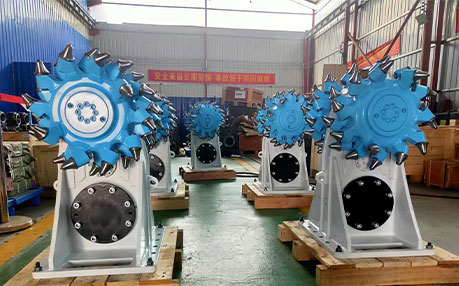

About Factory
