Product introduction

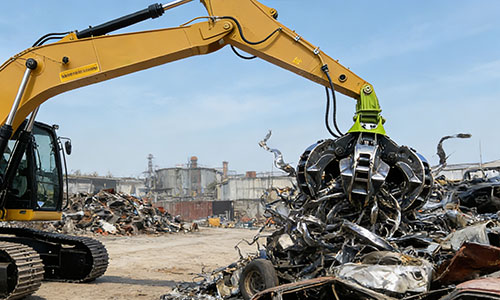

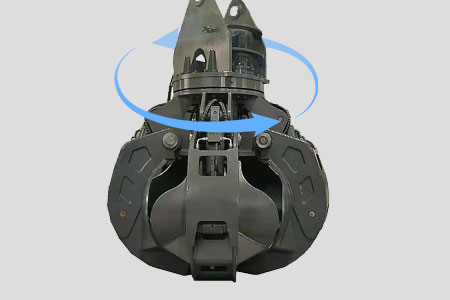

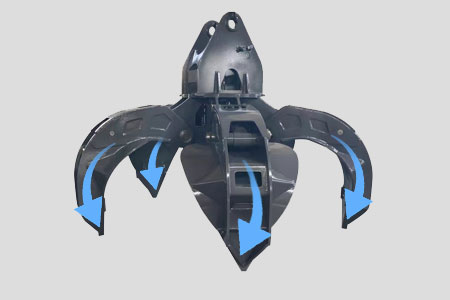

The orange peel grab is a multi-lobed hydraulic grab for excavators. It is a hydraulically driven device that allows multiple jaw lobes (usually 4-6 lobes, resembling lotus petals) to open and close simultaneously. It is mainly used for loading, unloading, and transporting bulk stones, steel, timber, and other materials, achieving high-density clamping and rapid transfer of materials.
Orange Peel Grapple
Get A Quote
Steel Grabber
Get A Quote

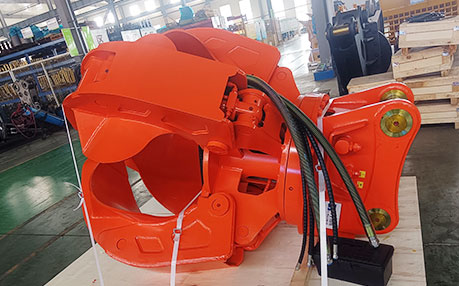

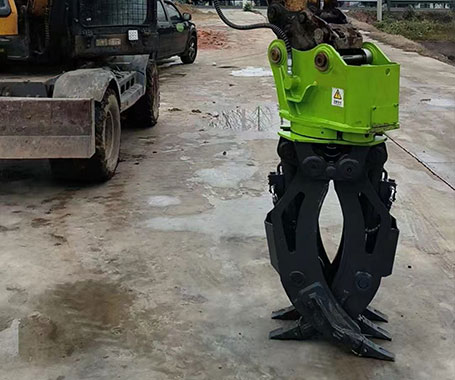

Log Grabber
Get A Quote
Technical Specifications
| Model | YG-150 | YG-200 | YG-300 |
| Excavator Class | 9-16t | 18-26t | 28-35t |
| Weight | 1000kg | 1500kg | 1950kg |
| Height | 2250mm | 2680mm | 3000mm |
| Width | 1130mm | 1300mm | 1540mm |
| Opening | 1800mm | 2200mm | 2600mm |
| Driving Pressure | 250Mpa | 280Mpa | 300Mpa |
| Oil Flow | 160L/min | 220L/min | 300L/min |
| Capacity | 0.6m³ | 1m³ | 1.2m³ |
| Note: Technical specifications may change without notice due to ongoing technological advancements. | |||
Note: Technical specifications may change without notice due to ongoing technological advancements.
Product Advantages
Get A Quote
Application Areas

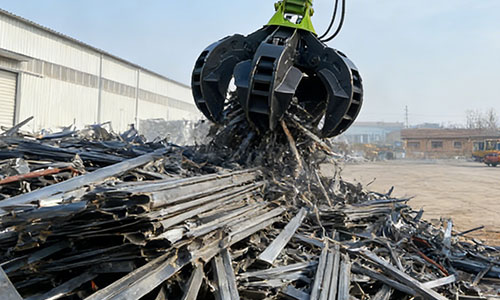

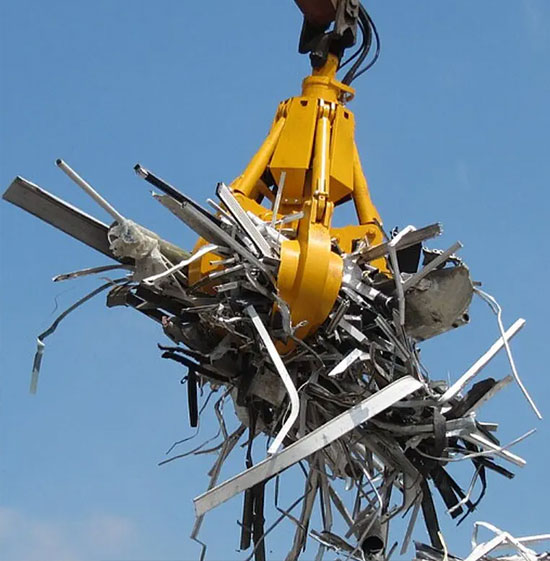

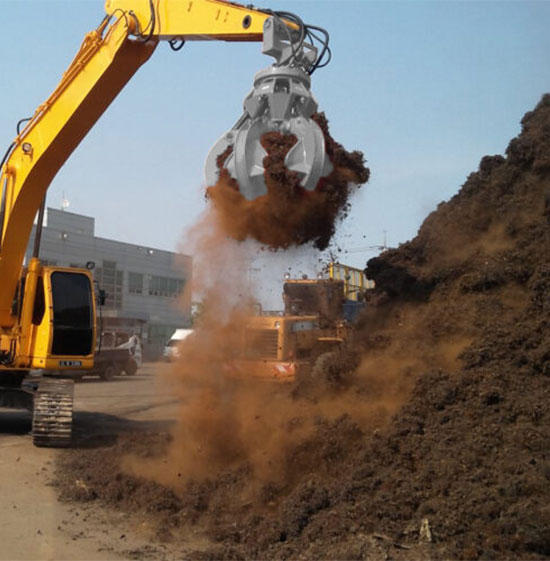

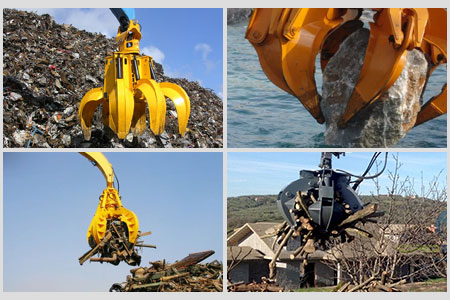

Hydraulic orange peel grapples have a wide range of applications and are suitable for loading, unloading, and handling various materials such as scrap steel, wood, and stone.
Get A Quote

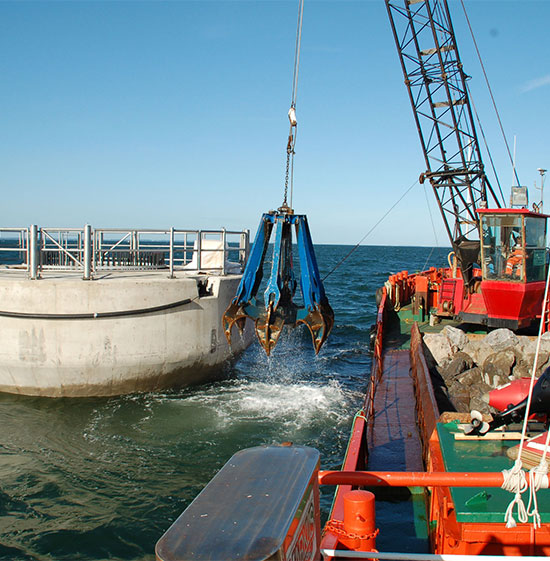

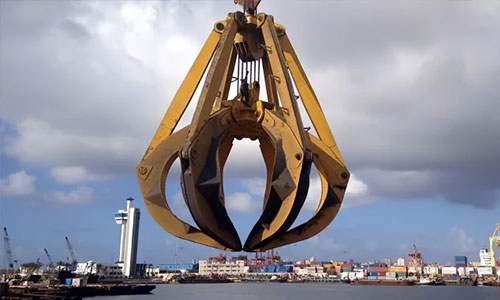

Port Terminals
Building Demolition
Quarries
Automobile Dismantling
Why Choose Us
-
01Professional source factoryProvide high-quality excavator grapple from the source of production to ensure that each machine meets strict industry standards.
-
0220 years of industry experienceProvide professional grappling solutions and technical support, and sell a full range of excavator grappling tools.
-
03Full set of accessories supplyProvide one-stop service, Includes a complete set of accessories such as various excavator attachments.
-
04Full process serviceProvide a full range of services from pre-sales consultation, contract signing to after-sales service and technical suppor.

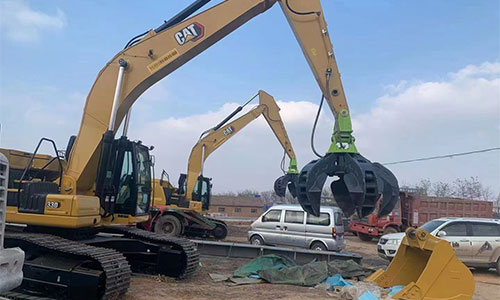

Customer Real Case

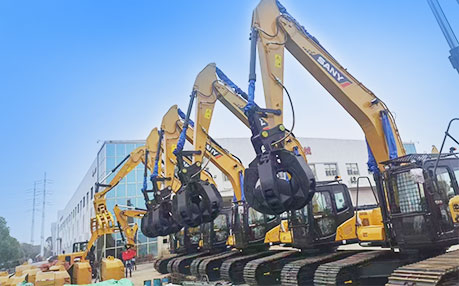

Yugong excavator attachments, including rotating orange peel grapples, are exported to over 100 countries and regions, with more than 2,000 customer cases, earning widespread recognition and praise from customers.
Get A Quote
Related Products
Choose Yugong excavator attachments to make your projects easier and faster, delivering outstanding performance under any conditions.

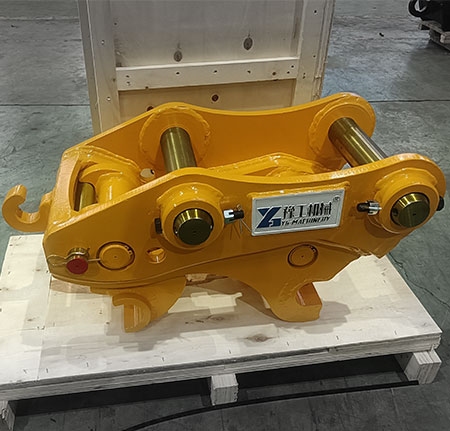

Quick-connect Attachments
Get A Quote

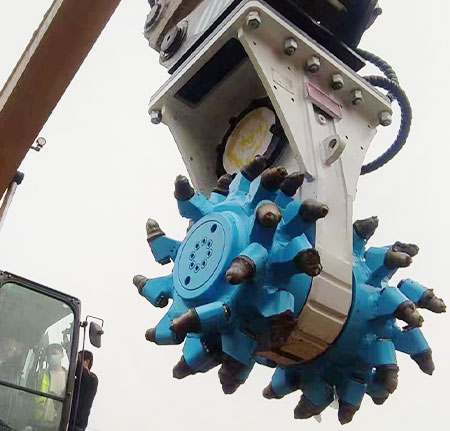

Drum Cutter
Get A Quote
Car Dismantling Shears
Get A Quote
About Factory
Henan Yugong Machinery Co., Ltd., established in 2005, boasts 20 years of experience in the construction machinery industry, over 500 employees, an 80,000-square-meter modern factory, and professional product R&D and pre-sales/after-sales personnel. With excellent products and services, we have earned the trust and recognition of over 2,000 customers worldwide. Yugong consistently adheres to a customer-first philosophy, ensuring that every customer receives satisfactory products and services.

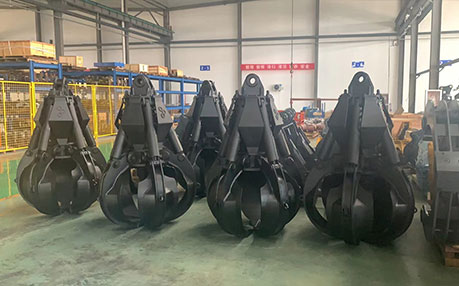

- Our Factory
